This document introduces a PC terminal block with a nominal current of 17.5A, nominal voltage of 250V, 5 positions, screw connection, soldering assembly, 90° conductor/PCB connection direction, and green color. In addition, it is also possible to connect a 1.5mm² conductor with ferrule, but there will be a reduction in rated voltage or pollution degree/surge category.

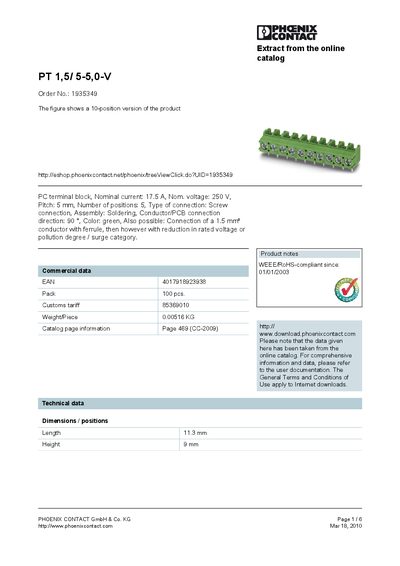

The PT 1,5/5-5,0-V terminal block is a 5 mm pitch, 5‑position screw‑connection terminal made of green‑colored housing. It is rated for a nominal current of 17.5 A and a nominal voltage of 250 V, with a rated surge voltage of 4 kV. Physical dimensions are 11.3 mm length and 9 mm height, and the unit weighs 0.00516 kg.
The handbook also lists accessories such as marker cards and screwdrivers, provides derating diagrams, and includes certification information (CUL, UL, CCA). Contact details for Phoenix Contact Germany are given at the end of the document.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 5 |
| Length | 11.3 mm |
| Height | 9 mm |
| Weight per piece | 0.00516 kg |
| EAN | 4017918923938 |
The nominal current rating is 17.5 A.
It has 5 positions.
The pitch is 5 mm.
The EAN code is 4017918923938.
