This document describes the PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 17.5A and a rated voltage of 250V, screw connection, soldering assembly, and a green color. In addition, the product can also connect a 1.5mm² conductor with a ferrule, but the rated voltage or pollution degree/surge category will be reduced.
The PT 1,5/3-5,0-H is a compact terminal block with a 5 mm pitch and up to three positions (a 10‑position version is also shown). It is designed for screw connection and can be assembled by soldering, supporting conductor sizes down to 1.5 mm with ferrules.
The leaflet lists key technical data such as nominal current, voltage ratings, dimensions, weight, and certification details, and includes accessories, tools, and drawing references for installation and derating calculations.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Length | 9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.003022 kg |
| EAN | 4017918916947 |
The terminal block is rated for a nominal current of 17.5 A.

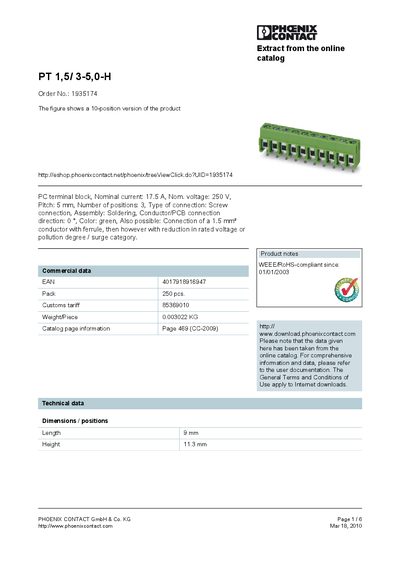

It has three positions, although a 10‑position version is shown in the figure.
The pitch is 5 mm.
The order number is 1935174.
