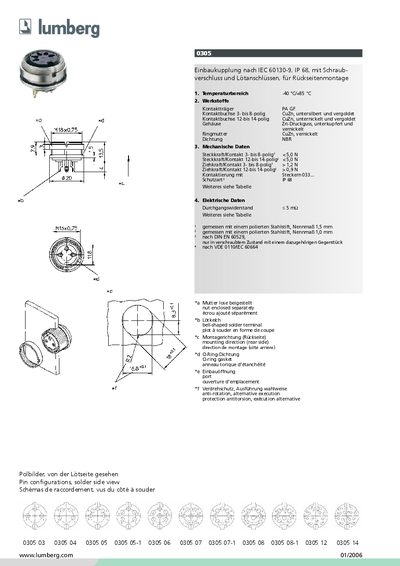

The document describes an Einbaukupplung according to IEC 60130-9 standard, with IP 68 protection class and suitable for rear mounting. The product features include a temperature range of -40 °C / + 85 °C, contact materials made of CuZn with silver plating and gold plating, a Zn die-cast housing with copper plating and nickel plating, and an IP 68 protection class.
The 0305 series is a rear‑mount circular connector compliant with IEC 60130‑9 and rated IP68. It features a threaded closure and solder terminals for secure rear‑side mounting.
The document lists mechanical data such as insertion and withdrawal forces, electrical data including contact resistance, and material specifications for the housing, contacts, ring nut and gasket. Packaging is supplied in a cardboard box. This manual is written in German.
| Temperature range | -40 °C to +85 °C |
|---|---|
| IP rating | IP68 |
| Contact resistance | <5 mΩ |
| Insertion force (3‑8 poles) | <5.0 N |
| Withdrawal force (3‑8 poles) | >1.2 N |
| Housing material | Zn die‑cast, pre‑coppered |
| Contact material (3‑8 poles) | CuZn, pre‑silvered and gilded |
| Gasket material | NBR |
It operates from -40 °C to +85 °C.
The connector is rated IP68.
Insertion force is less than 5.0 N and withdrawal force is greater than 1.2 N.
The housing is zinc die‑cast with a copper coating, and the contacts are CuZn, pre‑silvered and gilded.
