This file is about the specification of KLS 22, including the product name, model, brand, interface type, interface definition, rated current, rated voltage, working temperature and other information.
The KLK 22 is a 3.5 mm jack connector compliant with JIS C 6560. It features a straight metal housing with kink protection and solder terminals. The connector is offered in a 2‑pole mono configuration.

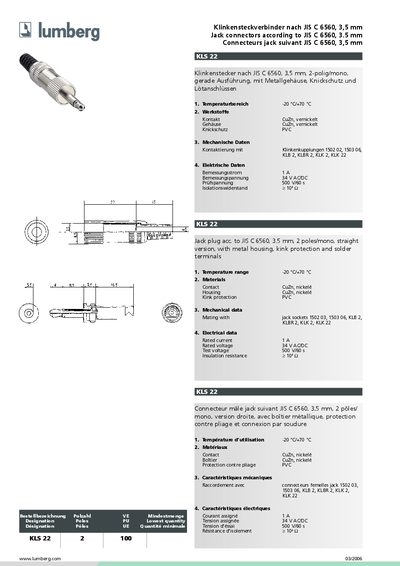

The document lists the operating temperature range, construction materials, mechanical mating options, and key electrical parameters such as rated current, voltage, test voltage and insulation resistance.
| Operating temperature range | -20 °C to +70 °C |
|---|---|
| Contact material | CuZn, nickel‑plated |
| Housing material | CuZn, nickel‑plated |
| Rated current | 1 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | 210 MΩ |
The connector is rated for a continuous current of 1 A.
It can be used from –20 °C up to +70 °C.
The test voltage is 500 V applied for 60 seconds.
