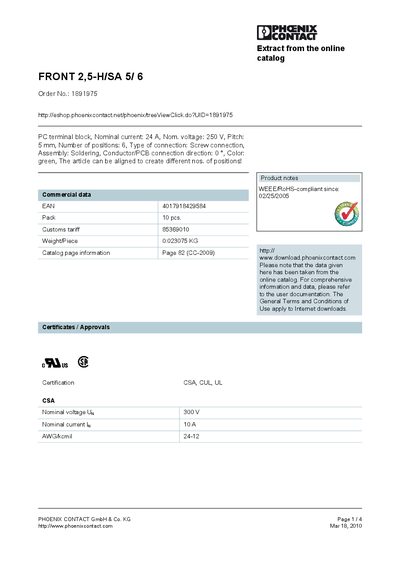

This document is about the product information of PC terminal blocks from PHOENIX CONTACT GmbH & Co. KG. The terminal block has a rated current of 24A, rated voltage of 250V, 5mm pitch, 6 positions, screw connection, soldering assembly, 0° conductor/PCB connection direction, and green color. The product is WEEE/RoHS-compliant and certified by CSA, CUL, and UL.
The FRONT 2,5-H/SA 5/6 is a green terminal block with a 5 mm pitch, six positions, and a screw‑type connection. It is rated for 24 A nominal current and 250 V nominal voltage and can be assembled by soldering.
The handbook lists accessories such as end covers, pitch spacers, insertion bridges, marker pens and cards, as well as tools like a screwdriver. Certification information (CSA, CUL, UL) and ordering details (Order No. 1891975, pack of 10 pcs) are also included.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Type of connection | Screw connection |
| Assembly method | Soldering |
| Conductor/PCB direction | 0 ° |
| Color | green |
| Weight per piece | 0.023075 kg |
| Pack size | 10 pcs |
It is rated for 24 A nominal current.
The terminal block provides six positions.
It uses a screw connection.
Accessories include end cover, pitch spacer, insertion bridges (2, 3, 6 positions), marker pens, marker cards, and a screwdriver tool.
