MCD 1,5/ 8-G1-3,81 is a connector produced by PHOENIX CONTACT with 8 A rated current, 160 V rated voltage, 3.81 mm pitch, 8 positions, green appearance, and can be assembled by soldering.
The MCD 1,5/8-G1-3,81 is an 8‑position green terminal block with a 3.81 mm pitch, designed for soldering assembly. It supports a nominal current of 8 A and a nominal voltage of 160 V.

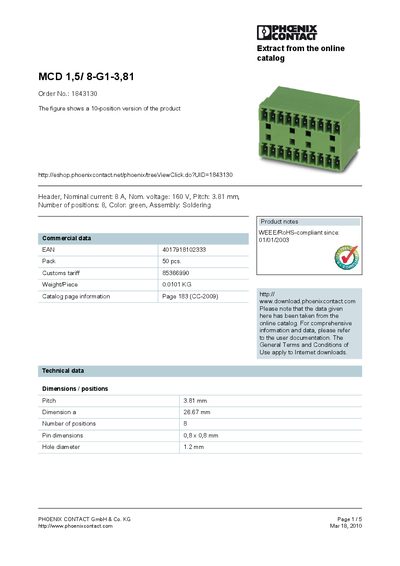

The sheet lists commercial data, accessories, drawing information and certification details, providing all necessary dimensions, ratings and ordering information for engineers and installers.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Color | green |
| Assembly type | Soldering |
| Overall dimension a | 26.67 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Hole diameter | 1.2 mm |
| Weight per piece | 0.0101 kg |
| EAN | 4017918102333 |
| Customs tariff | 85366990 |
The nominal current is 8 A.
It has 8 positions.
The pitch is 3.81 mm.
The nominal voltage rating is 160 V.
