PT 1,5/ 6-PVH-3,5 is a connector from Phoenix Contact. It has an 8A rated current, a 160V rated voltage, a 3.5mm pitch, 6 positions, a screw connection type and is green in color.
The PT 1,5/6-PVH-3,5 is a 6‑position screw‑connection terminal block with a 3.5 mm pitch, rated for 8 A and 160 V. It is supplied in a green housing and includes detailed dimensions, tightening torque values, and surge voltage ratings.

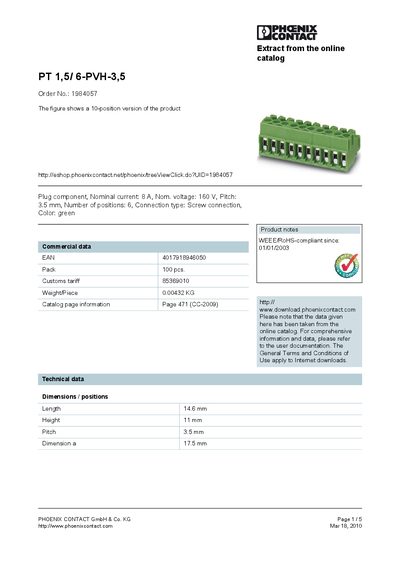

The handbook also lists certifications (CUL, CCA, SEV, UL), accessories such as marker cards and screwdriver tools, and provides wiring diagrams. For full product information and ordering, refer to Phoenix Contact’s online catalog or download the complete user documentation.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Color | green |
| Length | 14.6 mm |
| Height | 11 mm |
| Weight per piece | 0.00432 kg |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It has six positions.
The pitch is 3.5 mm.
It is certified for CUL, CCA, SEV, and UL.
