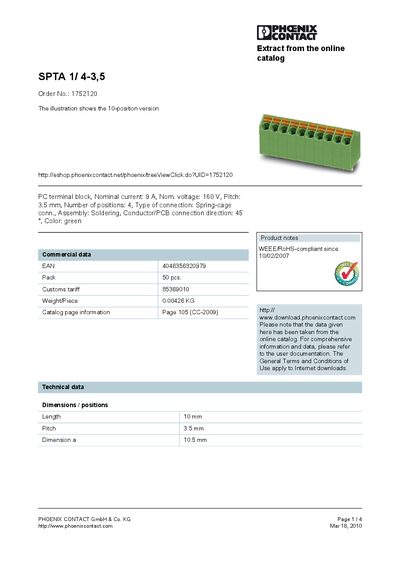

SPTA 1/ 4-3,5 is a PC terminal block from PHOENIX CONTACT. It has a nominal current of 9 A, a nominal voltage of 160 V, a pin spacing of 3.5 mm, 4 positions, a spring-cage connection, a soldering assembly, a 45° conductor/PCB connection direction, and a green color.
The SPTA 1/4-3,5 is a spring‑cage terminal block designed for soldered PCB mounting. It offers a 3.5 mm pitch, four positions, and a green housing.
Key electrical ratings include a nominal current of 9 A, nominal voltage of 160 V, and surge voltage capability of 2.5 kV. The device complies with EN‑VDE insulation standards and is RoHS‑/WEEE‑compliant.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
| Color | green |
| Weight per piece | 0.00426 kg |
The nominal current is 9 A.
It has four positions.
The pitch is 3.5 mm.
The nominal voltage rating is 160 V.
