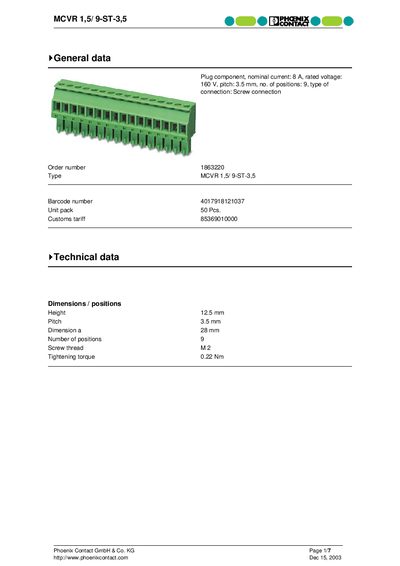

The document describes a product called MCVR 1,5/ 9-ST-3,5. This product is a general data plug component with a nominal current of 8A and a rated voltage of 160V. It has a pitch of 3.5mm and 9 positions. The type of connection used is a screw connection. The document also provides detailed technical data and connection information.
The MCVR 1,5/9-ST-3,5 is a plug‑type terminal block with a nominal current of 8 A and a rated voltage of 160 V. It features a 3.5 mm pitch, nine positions, and a screw‑type connection. Key dimensions are a height of 12.5 mm, a width of 28 mm, and a screw thread size M2, with a recommended tightening torque of 0.22 Nm.
The handbook also lists certifications (UL, CUL), drawing references, and a range of accessories such as marker pens and screwdriver tools. Additional compatible products and the manufacturer's contact information are provided at the end of the document.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 9 |
| Height | 12.5 mm |
| Width (dimension a) | 28 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It provides nine positions for connections.
The pitch between contacts is 3.5 mm.
A tightening torque of 0.22 Nm is recommended.
