phoenix contact plh 16/ 3-10 is a 16 mm pitch terminal with 3 positions and can withstand 400 volts of voltage. the product uses spring cage connection and can be connected by soldering.
The PLH 16/3-10 is a compact terminal block with a 10 mm pitch and three positions, designed for spring‑cage connections and suitable for soldering assembly. It is RoHS‑compliant and supplied in packs of 50 pieces.

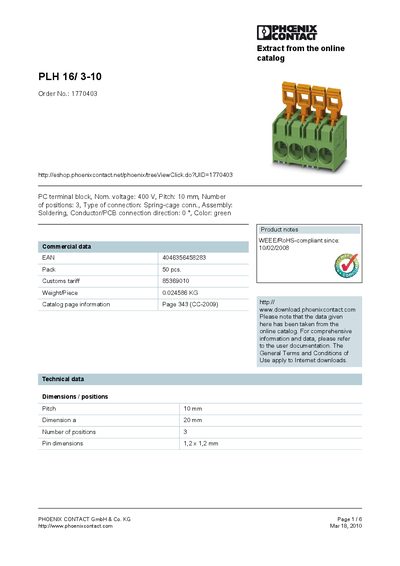

The datasheet includes detailed technical data such as nominal voltage, rated surge voltage, pin dimensions, and conductor cross‑section ranges, as well as mechanical drawings, drilling plans, and contact information for Phoenix Contact.
| Nominal voltage | 400 V |
|---|---|
| Pitch | 10 mm |
| Number of positions | 3 |
| Pin dimensions | 1.2 x 1.2 mm |
| Weight per piece | 0.024586 kg |
| Pack size | 50 pcs |
The pitch is 10 mm.
It has three positions.
The nominal voltage rating is 400 V.
Each piece weighs 0.024586 kg.
