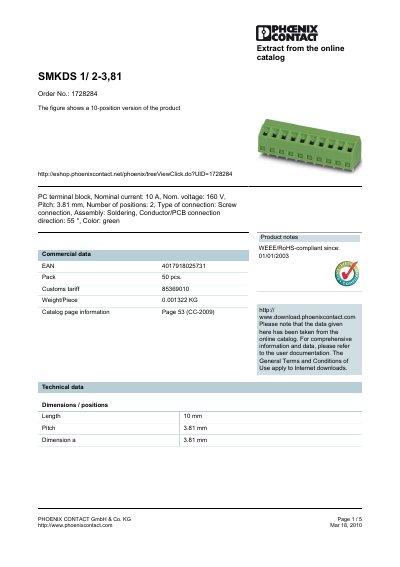

smkds 1/ 2-3,81 is a green pc terminal block produced by phoenix contact. the rated current is 10a, the rated voltage is 160v, the pitch is 3.81mm, and there are 2 terminals. the connection method is screw connection, the assembly method is soldering, and the conductor/pcb connection direction is 55 °
The SMKDS 1/2-3,81 is a 2‑position PC terminal block with a 3.81 mm pitch, designed for screw‑type connections and suitable for industrial electrical applications. It is supplied in green‑colored housing and complies with WEEE/RoHS regulations.
The sheet lists detailed technical data such as nominal current, voltage ratings, tightening torque, insulating material class, and approved certifications (CB, CCA, CSA, CUL, GOST, SEV, UL). It also provides dimensions, connector cross‑section limits, and a range of accessories like marker cards and screwdriver tools. This manual is written in Chinese.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Rated voltage (III/2) | 200 V |
| Rated voltage (II/2) | 400 V |
| Insulating material group | I |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Weight per piece | 0.001322 kg |
The nominal current is 10 A.
The pitch is 3.81 mm.
The recommended tightening torque is between 0.22 Nm and 0.25 Nm.
It is certified by CB, CCA, CSA, CUL, GOST, SEV and UL.
