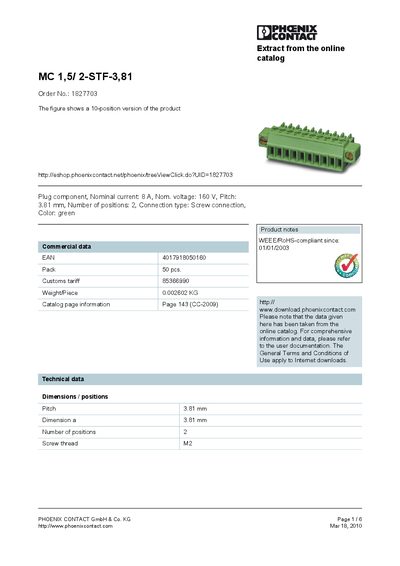

This document is an introduction to the MC 1,5/ 2-STF-3,81 product from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 8A, a nominal voltage of 160V, screw connection, and green color.
The MC 1,5/2‑STF‑3,81 is a green, 2‑position plug component with a 3.81 mm pitch and screw‑type connection, designed for a nominal current of 8 A and nominal voltage of 160 V. It is suitable for direct mounting or press‑in assembly and complies with RoHS/WEEE regulations.
The datasheet lists detailed technical data such as tightening torque (0.22 Nm – 0.25 Nm), rated surge voltages, dimensions, and approved certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI). It also includes a list of compatible accessories and part numbers for extended configurations.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Weight per piece | 0.002602 kg |
The nominal current is 8 A.
The pitch is 3.81 mm.
The tightening torque ranges from 0.22 Nm to 0.25 Nm.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
