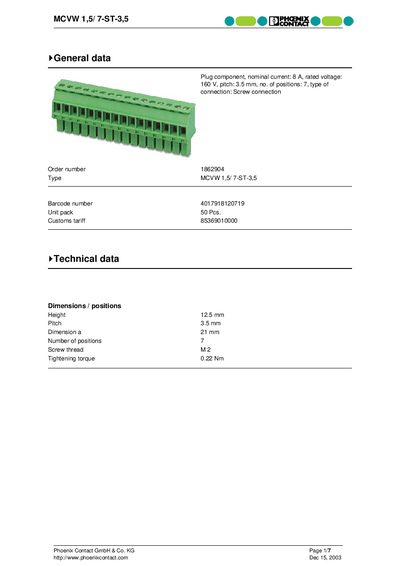

This document describes a plug component called MCVW 1,5/ 7-ST-3,5. It has a nominal current of 8A, rated voltage of 160V, 7 positions, and uses a screw connection. The product is manufactured by Phoenix Contact GmbH & Co. KG.
The MCVW 1,5/7-ST-3,5 is a screw‑connection terminal block designed for 8 A nominal current and 160 V rated voltage. It features a 3.5 mm pitch, seven positions, and a compact 12.5 mm height, making it suitable for a variety of wiring applications.
The handbook provides detailed specifications such as height, pitch, tightening torque, and material data, as well as a list of compatible accessories like marker pens, marker cards and a screwdriver. Additional product references and ordering information are also included.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 7 |
| Height | 12.5 mm |
| Dimension a | 21 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| AWG/kcmil | 30‑14 |
The terminal block is rated for a nominal current of 8 A.
It provides seven positions for connections.
The pitch of the terminal block is 3.5 mm.
