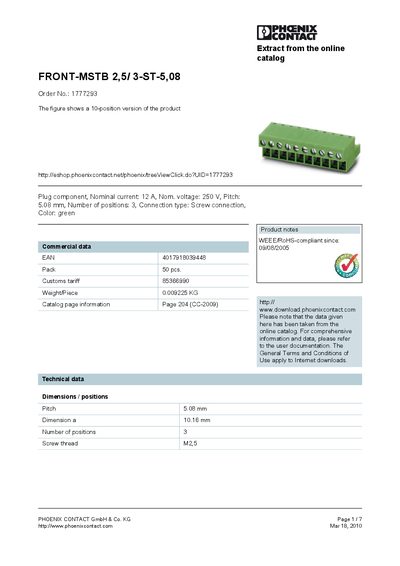

This document introduces the plug component produced by PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 12A, a rated voltage of 250V, a pitch of 5.08mm, 3 positions, a screw connection, and a green color. In addition, the product is WEEE/RoHS-compliant. The technical data includes information on dimensions, tightening torque, insulating material group, and rated voltage.
The FRONT-MSTB 2,5/3-ST-5,08 is a green‑colored terminal block with a 5.08 mm pitch, three positions, and a nominal current of 12 A at 250 V. It is offered with screw, spring‑cage, and crimp connection types and can be mounted by press‑in, soldering, or DIN‑rail methods.
The handbook lists accessories such as removal aids, marker cards, and keying profiles, and includes certification information (CSA, CUL, UL, VDE‑PZI). Ordering numbers and cross‑reference part numbers are provided for easy procurement.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Color | green |
| Connection type | Screw connection |
| Mounting type | Soldering |
The terminal block is rated for a nominal current of 12 A.
The pitch is 5.08 mm.
It has three positions.
The nominal voltage is 250 V (some variants 320 V).
