This circular connector is designed according to IEC 60130-9 and AISG specifications, with waterproof IP 68 grade and screw lock function. It has 3 to 14 pins, with a pin diameter of 1.5 mm (03-08-1) or 1.0 mm (12-14).

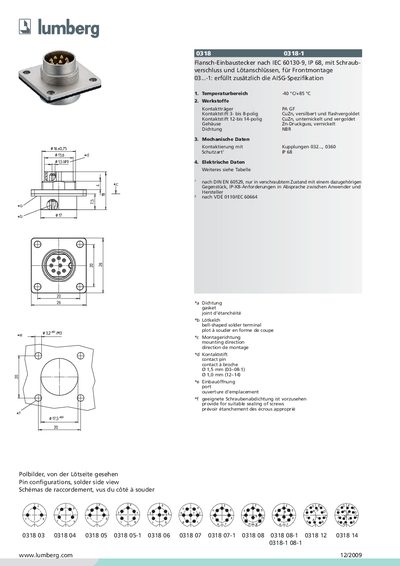

The 0318‑1 is a flange‑type circular connector designed for front mounting and compliant with IEC 60130‑9 and the AlSG specification. It features a threaded joint, IP68 protection and optional solder terminals.
Key information includes temperature range, material construction, contact configurations (3‑8 or 12‑14 poles), housing material, sealing gasket and compliance details, all presented in German, English and French. This manual is written in German.
| Contact carrier material | PA GF |
|---|---|
| Contact pins (3‑8 poles) | Cuzn, silvered and flash‑gold plated |
| Contact pins (12‑14 poles) | Cuzn, nickel‑plated and gold plated |
| Housing material | Zn die‑cast, nickel plated |
| Sealing gasket material | NBR |
| Standards compliance | IEC 60130‑9, AlSG specification |
The 3‑8 pole version uses copper‑alloy (Cuzn) that is silvered and flash‑gold plated; the 12‑14 pole version uses copper‑alloy that is nickel‑plated and gold plated.
