MCVR 1,5/ 7-ST-3,5 is an electrical cable connector produced by Phoenix Contact. The rated current is 8 A, the rated voltage is 160 V, the pitch between the sockets is 3.5 mm, and there are 7 sockets. The connection method is screw connection.

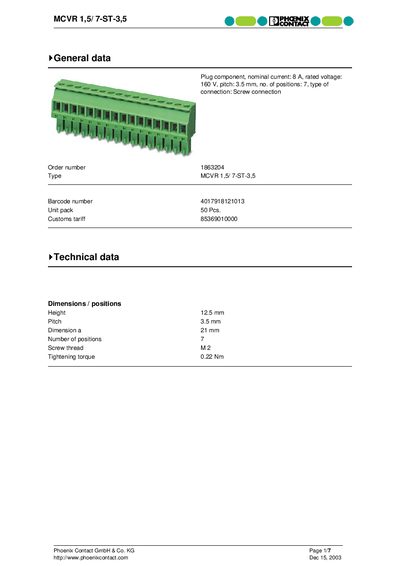

The MCVR 1.5/7-ST-3.5 is a screw‑connection terminal block with seven positions, a 3.5 mm pitch and a nominal current of 8 A at 160 V. The handbook provides detailed technical data, drawing references, certification information and a list of compatible accessories.
Key specifications include a height of 12.5 mm, tightening torque of 0.22 Nm, and UL and CUL certifications. The document also lists related header products and ordering information, as well as contact details for Phoenix Contact.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 7 |
| Height | 12.5 mm |
| Tightening torque | 0.22 Nm |
The nominal current is 8 A.
It has 7 positions.
The required tightening torque is 0.22 Nm.
