PST 1,3/ 5-LH-5,0 is a header produced by PHOENIX CONTACT. The product has a rated current of 14 A, rated voltage of 250 V, pitch of 5 mm, 5 pins, and black color. It can be assembled by soldering.

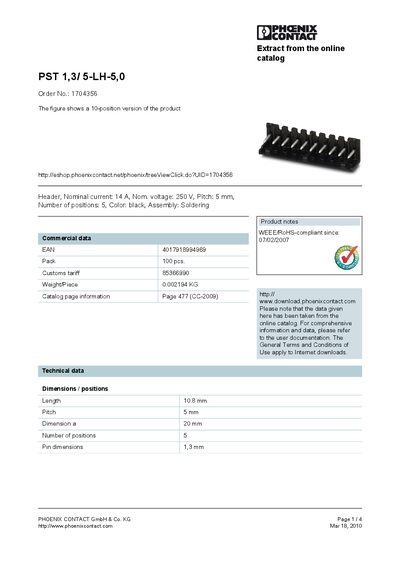

This document provides an overview of the PST 1,3/5-LH-5,0 connector, including its commercial data, dimensions, and key technical parameters. It is extracted from the Phoenix Contact online catalog and includes ordering information.
The sheet lists detailed technical data such as nominal current, voltage ratings, pitch, number of positions, and certification marks (UL, CUL, EN‑VDE). Additional information includes weight, EAN code, packaging, and RoHS compliance date.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 5 |
| Length | 10.8 mm |
| Dimension a | 20 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.002194 KG |
| RoHS compliance date | 07/02/2007 |
The connector is rated for a nominal current of 14 A.
It has five positions.
Yes, it has been RoHS compliant since 07/02/2007.
