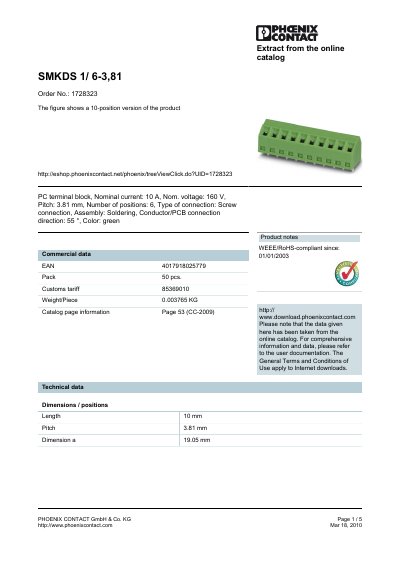

This document describes a PC terminal block from PHOENIX CONTACT GmbH & Co. KG, which features a nominal current of 10A, nominal voltage of 160V, screw connection, and soldering assembly.
The SMKDS 1/6-3,81 is a 6‑position terminal block with a 3.81 mm pitch, designed for screw connection and optional soldering. It is intended for use in electrical installations requiring up to 10 A nominal current and 160 V nominal voltage.
The sheet provides dimensions, electrical ratings, tightening torque, material specifications, certifications, and a list of accessories such as marker pens and screwdriver tools. It also includes packaging information and compliance notes (WEEE/RoHS). This manual is written in Chinese.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 6 |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Rated surge voltage (III/3) | 2.5 kV |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Weight per piece | 0.003765 kg |
The terminal block is rated for a nominal current of 10 A.
The required tightening torque is between 0.22 Nm (minimum) and 0.25 Nm (maximum).
It has six positions.
The pitch is 3.81 mm.
