GMSTBVA 2,5/ 4-G-7,62 is a product of PHOENIX CONTACT with a rated current of 12A, rated voltage of 400V, pitch of 7.62mm, 4 positions, green color and soldering assembly.
The GMSTBVA 2,5/ 4-G-7,62 is a green, 4‑position terminal block with a 7.62 mm pitch. It is rated for 12 A nominal current and 400 V nominal voltage (500 V for some versions) and is supplied for soldering or screw‑connection assembly.

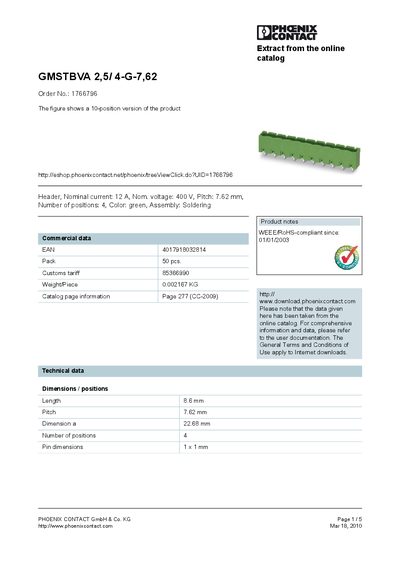

The handbook lists accessories such as keying caps, marker cards and coding sections, and includes certification details (CB, CSA, CUL, GOST, UL, VDE‑PZI). Ordering information, dimensions, weight (0.002167 kg per piece) and the EAN code are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V (500 V for some versions) |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.002167 kg |
| EAN | 4017918032814 |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The nominal current is 12 A.
It has 4 positions.
The pitch is 7.62 mm.
It is certified according to CB, CSA, CUL, GOST, UL and VDE‑PZI standards.
