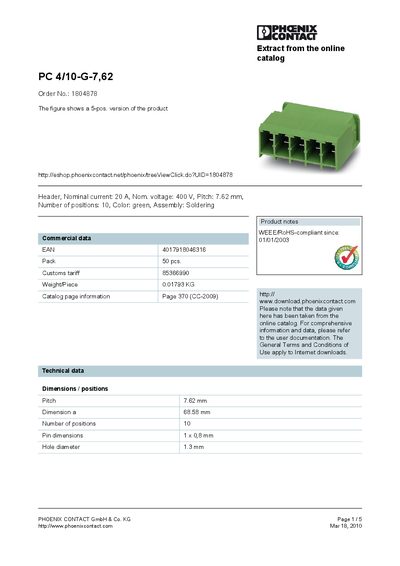

The document provides information about the PC 4/10-G-7.62 product from PHOENIX CONTACT GmbH & Co. KG. It is a 5-position connector with a nominal current of 20A, nominal voltage of 400V, pitch of 7.62mm, green color, and soldering assembly.
This handbook describes the PC 4/10-G-7,62 terminal block from Phoenix Contact. It lists the nominal current of 20 A, nominal voltage of 400 V, a 7.62 mm pitch, and a green housing, along with weight and regulatory compliance details.
The document also includes a list of compatible accessories, part numbers for plugs and adapters, and detailed diagrams for drilling plans and derating curves. Contact information for Phoenix Contact and ordering details are provided at the end.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 10 |
| Color | green |
| Weight per piece | 0.01793 KG |
| EAN | 4017918046316 |
| WEEE/RoHS compliance | since 01/01/2003 |
The terminal block is rated for a nominal current of 20 A.
It has 10 positions.
The pitch is 7.62 mm.
