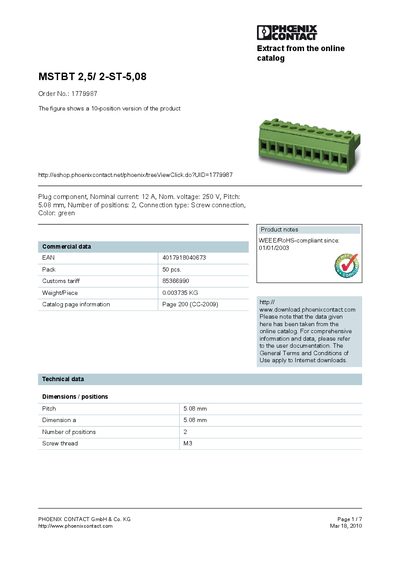

This file is about the MSTBT 2,5/ 2-ST-5,08 product. The product features include: rated current of 12 A, rated voltage of 250 V, pitch of 5.08 mm, 2 positions, screw connection type, and green color.
The MSTBT 2,5/2-ST-5,08 is a 2‑position terminal block with a 5.08 mm pitch, rated for 12 A and 250 V. It features a screw connection type, tight torque specifications, and complies with RoHS and VDE standards. Technical data such as surge voltage, tightening torque, and weight per piece are listed.
The document also lists compatible accessories, certification marks (CB, CSA, CUL, UL, VDE‑PZI), and ordering information. Diagrams and the manufacturer's address are included for reference.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
The terminal block is rated for a nominal current of 12 A.
It has 2 positions.
The pitch is 5.08 mm.
The minimum tightening torque is 0.5 Nm and the maximum is 0.6 Nm.
