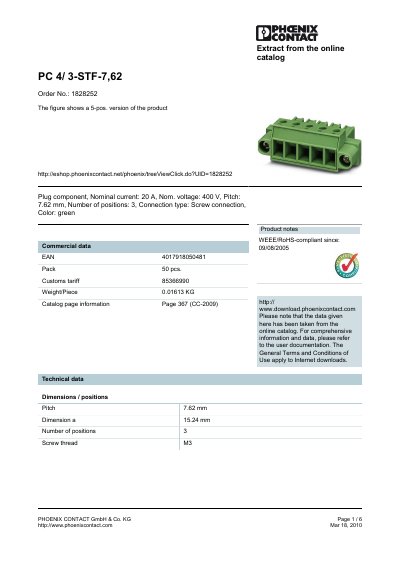

PC 4/ 3-STF-7,62 is a green connector from PHOENIX CONTACT with a rated current of 20 A, a rated voltage of 400 V, a thread of M3, 3 positions and screw connection
The PC 4/3-STF-7,62 is a green‑colored plug component with a 7.62 mm pitch and three positions, designed for screw‑type connections. It is rated for a nominal current of 20 A and a nominal voltage of 400 V, with insulating material group I and a rated surge voltage of 6 kV.
The document lists detailed mechanical dimensions, tightening torque values, a range of conductor cross‑section options, and certifications such as CSA, CUL, DNV, GL, GOST, LR, and UL. Accessories, marker cards, and drawing diagrams are also included.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.01613 kg |
| Dimension a | 15.24 mm |
| Insulating material group | I |
| Rated surge voltage (III/3) | 6 kV |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 1000 V |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Certifications | CSA, CUL, DNV, GL, GOST, LR, UL |
The nominal current rating is 20 A.
The pitch is 7.62 mm.
It is certified by CSA, CUL, DNV, GL, GOST, LR, and UL.
