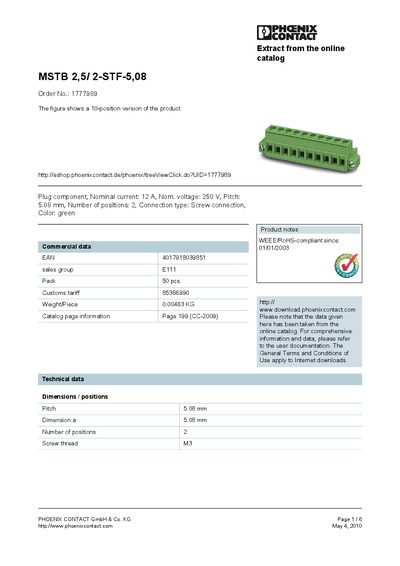

MSTB 2,5 / 2-STF-5,08 is a connector product of PHOENIX CONTACT. It has a rated current of 12 A, a rated voltage of 250 V, a pitch of 5.08 mm, 2 connection points, a screw connection, and a green color.
The MSTB 2,5/ 2‑STF‑5,08 is a feed‑through modular terminal block with a 5.08 mm pitch and two positions. It supports a nominal current of 12 A at 250 V, screw‑type connections, and is supplied in a green‑colored housing. Technical details include tightening torque (0.5 Nm min, 0.6 Nm max), rated surge voltages (4 kV) and various voltage groups (320 V, 630 V).
A range of accessories is listed, such as insertion bridges, marker pens, marker cards, and specialized screwdrivers. The product complies with multiple certifications (CB, CSA, CUL, GL, GOST, RS, UL, VDE‑PZI) and is WEEE/RoHS‑compliant since 2003.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Color | green |
The terminal block is rated for a nominal current of 12 A.
The pitch of the MSTB 2,5/ 2‑STF‑5,08 is 5.08 mm.
It is certified by CB, CSA, CUL, GL, GOST, RS, UL and VDE‑PZI.
