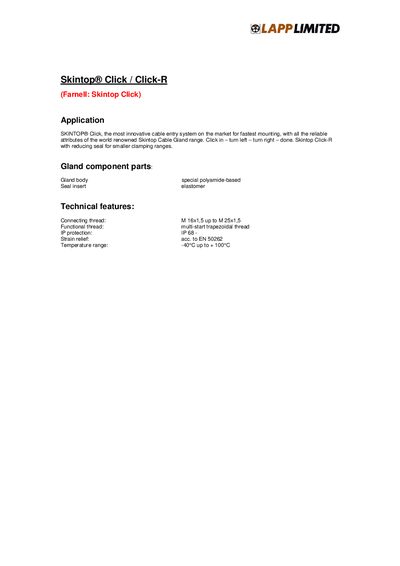

SKINTOP® Click, the most innovative cable entry system on the market for fastest mounting, with all the reliable attributes of the world renowned Skintop Cable Gland range. Click in – turn left – turn right – done. Skintop Click-R with reducing seal for smaller clamping ranges.
Skintop® Click and Click‑R are innovative cable entry systems that allow the fastest mounting: click in, turn left, turn right – done. The Click‑R version includes a reducing seal for smaller clamping ranges.
Technical features include a connecting thread M 16×1.5 up to M 25×1.5, a multi‑start trapezoidal functional thread, IP68 protection, strain relief according to EN 50262, and operation from –40 °C to +100 °C.
| Connecting thread | M 16x1,5 up to M 25x1,5 |
|---|---|
| Functional thread | multi-start trapezoidal thread |
| IP protection | IP 68 |
| Strain relief | according to EN 50262 |
| Temperature range | -40°C up to +100°C |
The Skintop Click has an IP68 protection rating.
It can operate from –40 °C up to +100 °C.
Install by clicking in, turning left, then turning right – done.
