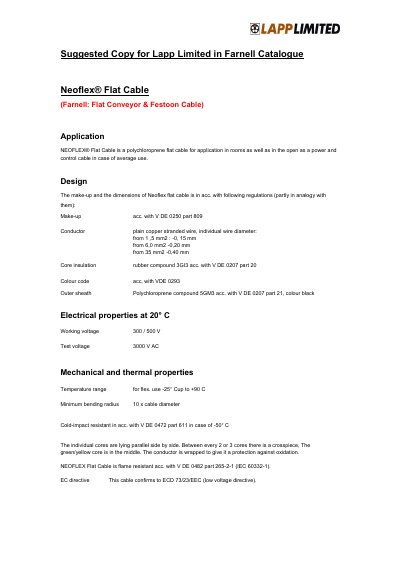

NEOFLEX® Flat Cable is a polychloroprene flat cable for application in rooms as well as in the open as a power and control cable in case of average use.
Neoflex® flat cable is a polychloroprene cable intended for power and control applications both in rooms and in open environments. It features parallel‑lying cores with a protective crosspiece and a green/yellow core in the middle.
The cable complies with multiple VDE regulations, is flame‑resistant, and meets the EC low‑voltage directive. It is suitable for temperatures from -25 °C to +90 °C and can be bent to a radius of ten times its diameter.
| Working voltage | 300 / 500 V |
|---|---|
| Test voltage | 3000 V AC |
| Minimum bending radius | 10 × cable diameter |
| Outer sheath material | Polychloroprene compound 5GM3 |
| Flame resistance | VDE 0482 part 265-2-1 (IEC 60332-1) |
| EC directive compliance | ECD 73/23/EEC (low voltage directive) |
| Conductor type | Plain copper stranded wire |
The working voltage is 300 V to 500 V.
Yes, it meets flame‑resistance requirements of VDE 0482 part 265‑2‑1 (IEC 60332‑1).
The minimum bending radius is ten times the cable diameter.
