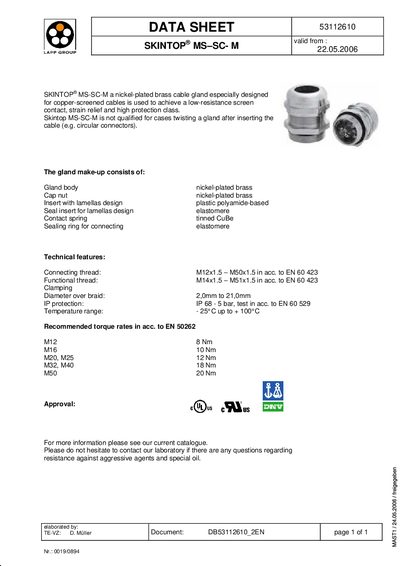

SKINTOP® MS-SC-M a nickel-plated brass cable gland especially designed for copper-screened cables is used to achieve a low-resistance screen contact, strain relief and high protection class.
The SKINTOP® MS‑SC‑M is a nickel‑plated brass cable gland designed for copper‑screened cables, offering low‑resistance screen contact, strain relief, and high protection class. It is not qualified for twisting the gland after cable insertion.
Technical features include a range of connecting and functional threads, IP68 protection, a temperature operating range of –25 °C to +100 °C, and recommended torque values for various thread sizes. The data sheet also lists material details for the gland body, cap nut, insert, seal, and contact spring.
| Connecting thread | M12x1.5 — M50x1.5 (EN 60 423) |
|---|---|
| Functional thread | M14x1.5 — M51x1.5 (EN 60 423) |
| Diameter over braid | 2.0 mm to 21.0 mm |
| IP protection | IP68, 5 bar (EN 60 529) |
| Temperature range | -25 °C to +100 °C |
| Torque (M12) | 8 Nm |
| Torque (M16) | 10 Nm |
| Torque (M20, M25) | 12 Nm |
| Torque (M32, M40) | 18 Nm |
| Torque (M50) | 20 Nm |
It is rated IP68 and tested to 5 bar according to EN 60 529.
A torque of 10 Nm is recommended for the M16 thread.
The gland operates from –25 °C up to +100 °C.
