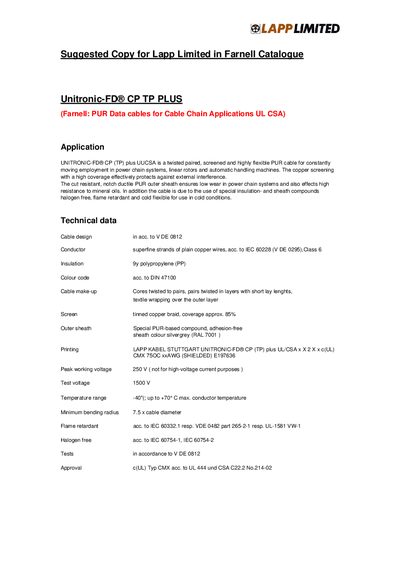

The document introduces Lapp Limited's product UNITRONIC-FD® CP TP PLUS (Farnell: PUR Data cables for Cable Chain Applications UL CSA) in the Farnell catalogue. The product is a twisted paired, screened, and highly flexible PUR cable designed for constantly moving employment in power chain systems, linear rotors, and automatic handling machines. The copper screening with a high coverage effectively protects against external interference. The cut-resistant, notch ductile PUR outer sheath ensures low wear in power chain systems and also provides high resistance to mineral oils. In addition, the cable is halogen-free, flame retardant, and cold flexible for use in cold conditions due to the use of special insulation and sheath compounds.
The UNITRONIC‑FD CP TP PLUS is a twisted‑pair, screened and highly flexible PUR cable designed for moving employment in power‑chain systems, linear rotors and automatic handling machines. Its copper screening provides high coverage against external interference, while the cut‑resistant, notch‑ductile PUR outer sheath offers low wear and resistance to mineral oils.
Technical data includes conductor construction, insulation material, screen coverage, flame‑retardant and halogen‑free compliance, voltage ratings, temperature range, minimum bending radius and various approvals (UL, CSA, VDE). The cable is halogen‑free, flame‑retardant and suitable for cold‑condition use.
| Peak working voltage | 250 V (not for high‑voltage current purposes) |
|---|---|
| Temperature range | -40 °C to +70 °C (max conductor temperature) |
| Minimum bending radius | 7.5 × cable diameter |
| Flame retardant | IEC 60332.1 (UL‑1581 VW‑1) |
| Halogen free | IEC 60754‑1, IEC 60754‑2 |
The cable’s peak working voltage is 250 V (not for high‑voltage current purposes).
Yes, it meets IEC 60332.1 for flame retardancy and IEC 60754‑1/2 for halogen‑free compliance.
It can operate from –40 °C up to +70 °C (maximum conductor temperature).
The minimum bending radius is 7.5 times the cable diameter.
