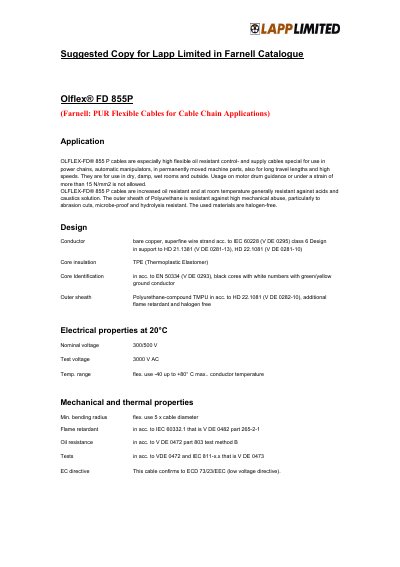

OLFLEX-FD® 855 P cables are specially designed for cable chain applications, featuring high flexibility, oil resistance, abrasion resistance, and high temperature resistance.
The FD 855P cable is designed for high‑flexibility, oil‑resistant control and supply applications in power chains, automatic manipulators, and permanently moving machine parts. It can be used for long travel lengths and high speeds in dry, damp, wet rooms and outdoor environments, but not on motor drum guidance under strain >15 N/mm².
The cable features a bare‑copper conductor (IEC 60228 class 6), TPE core insulation, and a polyurethane‑compound (TMPU) outer sheath that is flame‑retardant and halogen‑free. It is rated for 300/500 V nominal voltage, 3000 V AC test voltage, operates from –40 °C to +80 °C, and requires a minimum bending radius of five times the cable diameter.
| Conductor material | Bare copper, superfine wire strand, IEC 60228 class 6 |
|---|---|
| Core insulation | TPE (Thermoplastic Elastomer) |
| Nominal voltage | 300/500 V |
| Test voltage | 3000 V AC |
| Operating temperature range | -40 °C to +80 °C |
| Minimum bending radius | 5 × cable diameter |
| Flame‑retardant standard | IEC 60332.1 |
| Oil resistance standard | VDE 0472 part 803 |
| Halogen‑free | Yes |
It is a high‑flexibility, oil‑resistant control and supply cable for power chains, automatic manipulators, permanently moving machine parts, long travel lengths and high speeds, usable in dry, damp, wet rooms and outdoors.
No, usage on motor drum guidance under a strain of more than 15 N/mm² is not allowed.
The cable is rated for a nominal voltage of 300/500 V.
Yes, the materials used in the cable are halogen‑free.
