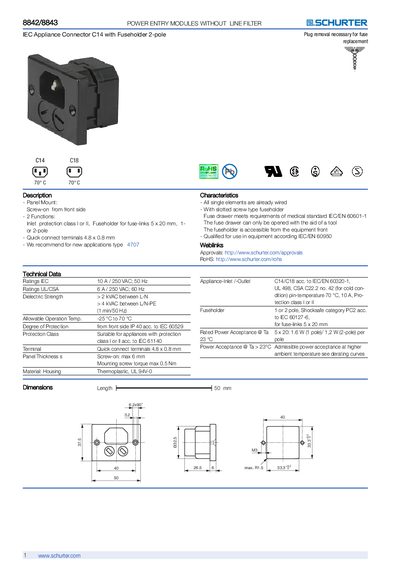

This power entry module with a C14 appliance connector with fuseholder and two functions is panel-mounted. It has protection class I or II and a fuseholder for fuse links 5 x 20 mm, 1- or 2-pole. Quick connect terminals are 4.8 x 0.8 mm. We recommend type 4707 for new applications.
The 8842/8843 power entry module is a panel‑mount IEC C14 appliance connector with an integrated 2‑pole fuseholder. It is designed for equipment that requires inlet protection class II and complies with IEC/EN 60950 and IEC/EN 60601‑1 for medical devices.
Key features include quick‑connect terminals (4.8 × 0.8 mm), a thermoplastic housing (UL 94‑0), IP 40 protection from the front side, and a fuse drawer that can only be opened with a tool. Technical data such as ratings, dielectric strength, temperature range, and dimensions are provided for proper selection and installation.
| IEC rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA rating | 6 A / 250 VAC, 60 Hz |
| Dielectric strength (L‑N) | > 2 kV AC |
| Operating temperature range | -25 °C to 70 °C |
| Degree of protection | IP 40 |
| Terminal type | Quick‑connect 4.8 × 0.8 mm |
| Housing material | Thermoplastic, UL 94‑0 |
| Fuseholder type | 1 or 2‑pole, Shocksafe PC2, 5 × 20 mm |
| Length | 150 mm |
It is rated for 10 A at 250 V under IEC standards.
The allowable operating temperature is from –25 °C up to 70 °C.
The fuse drawer can only be opened with a tool and is accessible from the equipment front.
It is suitable for appliances with protection class II according to IEC 61140.
