The document describes the FKC 2.5/4-ST-5.08 plug component from PHOENIX CONTACT GmbH & Co. KG. The product features a nominal current of 12A, nominal voltage of 250V, pitch of 5.08mm, 4 positions, spring-cage connection, and green color.
The FKC 2,5/4‑ST‑5,08 is a 4‑position plug component with a 5.08 mm pitch, rated for 12 A nominal current and 250 V nominal voltage. It features a spring‑cage connection type and is supplied in a green housing.

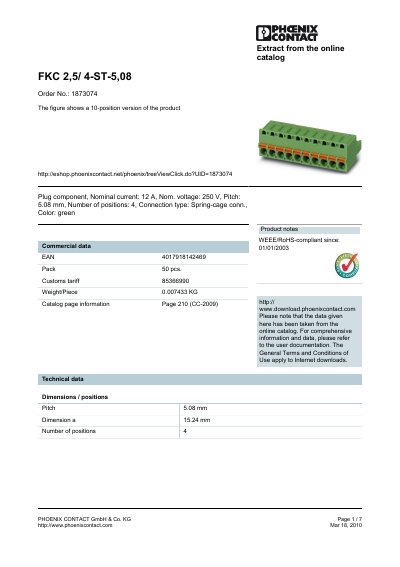

The data sheet lists detailed electrical ratings, dimensions, certifications (CB, CUL, UL, VDE‑PZI) and a range of compatible accessories such as strain reliefs, marker cards, and insulating sleeves. The product complies with WEEE/RoHS regulations since 01/01/2003.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 4 |
| Connection type | Spring‑cage conn. |
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Weight per piece | 0.007433 KG |
| Color | green |
The nominal current is 12 A.
It has four positions.
It uses a spring‑cage connection.
Yes, it has been RoHS‑compliant since 01/01/2003.
