MCDN 1,5/ 5-G1-3,5 P26THR is a 5-pin connector produced by PHOENIX CONTACT, with an rated current of 8A, rated voltage of 160V, assembly type of SMD/THT/THR, and color of black.

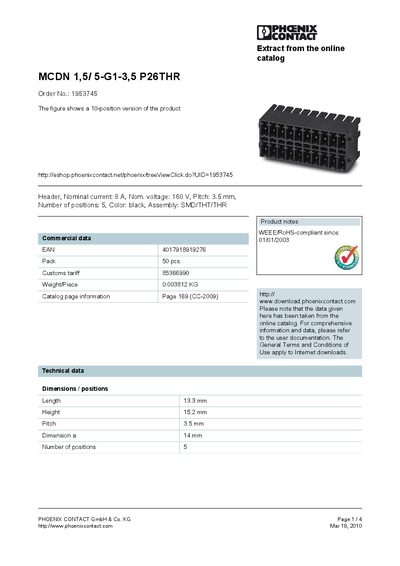

This document provides the technical specifications of the Phoenix Contact MCDN 1,5/5-G1-3,5 P26THR terminal block. It includes electrical ratings, mechanical dimensions, commercial data, and compliance information.
Additional sections list available accessories, keying profiles, and certification details, as well as contact information for Phoenix Contact.
| Nominal voltage | 160 V |
|---|---|
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Length | 13.3 mm |
| Height | 15.2 mm |
| Weight per piece | 0.003812 kg |
| EAN | 4017918919276 |
| WEEE/RoHS compliance date | 01/01/2003 |
It has 5 positions.
The pitch is 3.5 mm.
Length is 13.3 mm and height is 15.2 mm.
