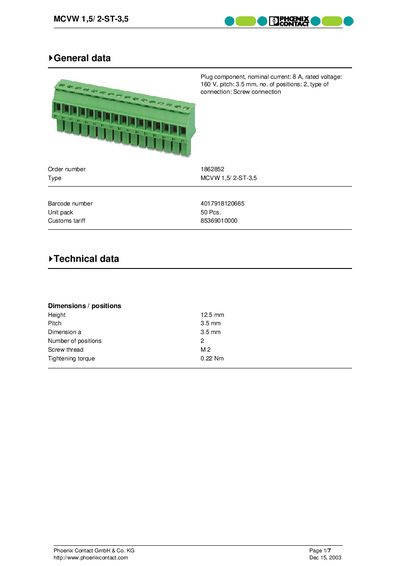

The document describes a plug component called MCVW 1,5/ 2-ST-3,5, with a nominal current of 8A and a rated voltage of 160V. It features a screw connection, 2 positions, and a M2 thread. The product is suitable for EN-VDE standard connection and has a nominal cross section of 1.5mm².
The MCVW 1,5/2-ST-3,5 is a screw‑connection terminal block designed for 8 A nominal current and 160 V rated voltage. It features a 3.5 mm pitch, two positions, and a compact 12.5 mm height, making it suitable for dense wiring applications.
The handbook provides detailed technical specifications, certification information (UL, CUL), dimensional drawings, and a list of compatible accessories such as marker pens and screwdriver tools. Additional product references and contact details for Phoenix Contact are also included.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Height | 12.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Inflammability class (UL 94) | PA |
The nominal current is 8 A.
It is rated for 160 V.
It has two positions.
A tightening torque of 0.22 Nm is specified.
