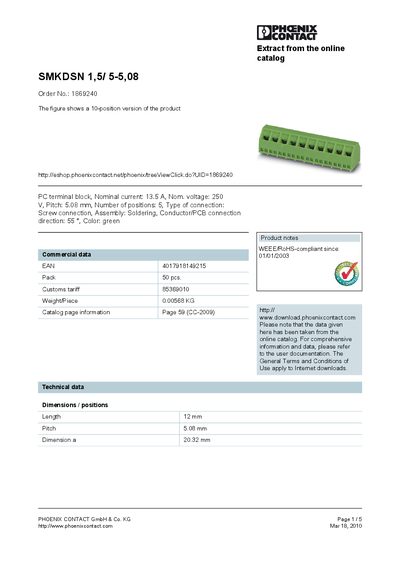

This document describes the features and characteristics of the PC terminal block SMKDSN 1,5/ 5-5,08 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, connection type, and dimensions.
The SMKDSN 1,5/5-5,08 is a compact terminal block designed for screw‑type connections. It provides five positions, a pitch of 5.08 mm, and is rated for a nominal current of 13.5 A at 250 V. The block is supplied in green, complies with RoHS since 2003, and is packaged 50 pieces per pack.
Technical data include dimensions (12 mm length, 20.32 mm overall), weight (0.00568 kg per piece), and various electrical ratings such as a 4 kV surge voltage and 320 V rated voltage (III/2). The document also lists certifications (CSA, CUL, UL) and optional accessories like marker pens and labeling cards.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Length | 12 mm |
| Weight per piece | 0.00568 kg |
| EAN | 4017918149215 |
The terminal block is rated for a nominal current of 13.5 A.
It provides five positions.
The pitch is 5.08 mm.
Each piece weighs 0.00568 kg.
