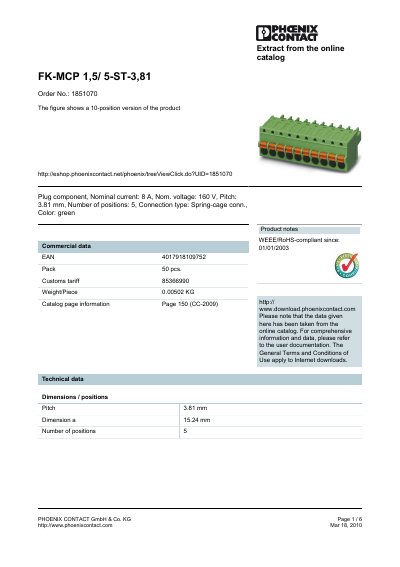

This document describes the features and characteristics of the plug component FK-MCP 1,5/ 5-ST-3,81 from PHOENIX CONTACT GmbH & Co. KG, including rated current, rated voltage, and connection type.
The FK-MCP 1,5/5-ST-3,81 is a 5‑position plug component with a 3.81 mm pitch, designed for industrial electrical connections. It supports a nominal current of 8 A and a nominal voltage of 160 V, with various conductor cross‑section options.
The datasheet lists key specifications such as surge voltage ratings, insulating material, and certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI). It also provides information on accessories, related header products, and packaging details. This manual is written in Chinese.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 5 |
| Insulating material | PA |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated voltage (II/2) | 320 V |
| Nominal cross section | 1.5 mm² |
| Maximum load current (1.5 mm² conductor) | 8 A |
| Weight per piece | 0.00502 kg |
The nominal current is 8 A.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
The pitch is 3.81 mm.
It has 5 positions.
