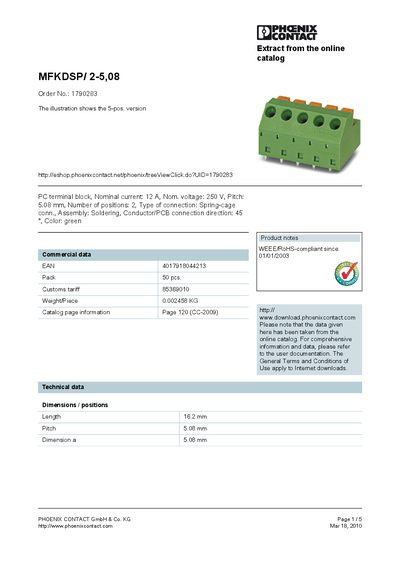

This is a PDF document about MFKD/2-5,08 product. It mainly introduces the model, size, color, current, voltage and other parameters of the product.
The MFKDSP/2-5,08 is a 2‑position terminal block with a 5.08 mm pitch, designed for 12 A nominal current and 250 V nominal voltage. It features a spring‑cage connection, solder‑on assembly, and a green housing.
The document provides detailed technical data, including dimensions, rated surge and working voltages, insulating material groups, certifications (CSA, CUL, UL), and accessory part numbers. Ordering information and a drilling plan for PCB mounting are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB direction | 45° |
| Color | Green |
| Inflammability class | UL 94 |
The nominal current rating is 12 A.
It has 2 positions.
The pitch is 5.08 mm.
