This document is about PC terminal blocks produced by PHOENIX CONTACT GmbH & Co. KG. It has a rated voltage of 400V, pitch of 10mm, 8 positions, spring-cage connection, soldering assembly, green color, and is WEEE/RoHS-compliant.

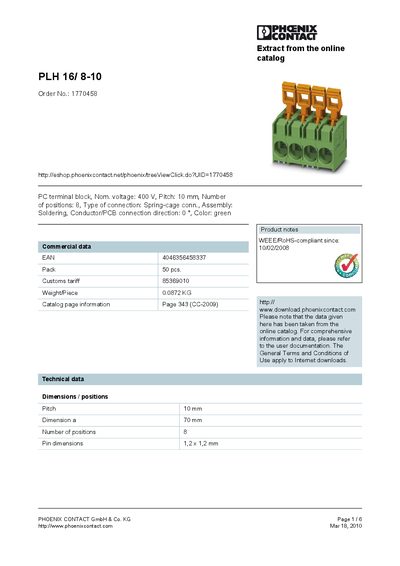

The PLH 16/8-10 is a spring‑cage terminal block from Phoenix Contact designed for 400 V nominal voltage applications. It features a 10 mm pitch, eight positions, and is supplied in green‑colored housing.
The handbook provides detailed technical data, including dimensions, insulating material specifications, connection data, and multiple drawings (functional, dimensioned, and drilling plans). For full product information and additional documentation, refer to the Phoenix Contact website links included in the document.
| Nominal voltage | 400 V |
|---|---|
| Pitch | 10 mm |
| Number of positions | 8 |
| Weight per piece | 0.0872 kg |
| Pack size | 50 pcs |
The nominal voltage is 400 V.
It has eight positions.
The pitch is 10 mm.
The product can be accessed at the Phoenix Contact e‑shop via the URL shown in the handbook.
