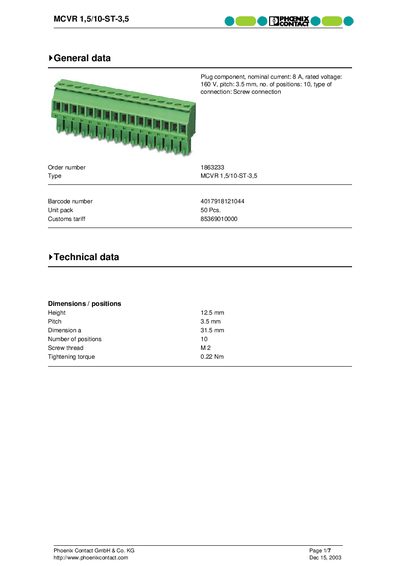

The product is a MCVR 1,5/10-ST-3.5 connector with a rated current of 8A, rated voltage of 160V, and screw connection. It is 12.5mm high, 3.5mm pitch, 31.5mm long, M2 thread, and 0.22Nm tightening torque.
The MCVR 1,5/10-ST-3,5 is a plug‑type terminal block with a 3.5 mm pitch and ten positions, designed for 8 A nominal current and 160 V rated voltage. It is supplied in unit packs of 50 pieces and includes screw‑type connections with a M2 thread.
The handbook lists detailed specifications such as height, tightening torque, and material certifications (UL, CUL). It also describes compatible accessories like marker pens, marker cards, and a screwdriver, and provides part numbers for related headers and additional products.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
| Height | 12.5 mm |
| Dimension a | 31.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Unit pack | 50 pcs |
The terminal block is rated for a nominal current of 8 A.
It has ten positions.
