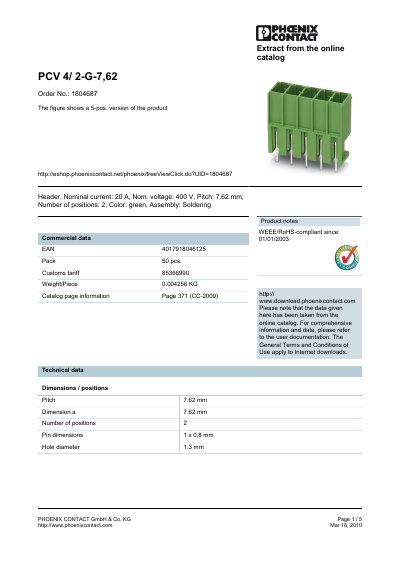

This document is an introduction to the PCV 4/2-G-7,62 product, including its specifications, features, and technical data.
The PCV 4/2-G-7,62 is a 2‑position terminal block designed for soldered connections. It is rated for 20 A nominal current and 400 V nominal voltage, with a 7.62 mm pitch and a green housing.
The sheet lists detailed technical data such as surge voltage ratings, insulating material, and certification approvals, as well as dimensions, mounting options, and compatible accessories like marker cards and coding profiles.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 2 |
| Assembly method | Soldering |
| Rated surge voltage (III/3) | 6 kV |
| Insulating material group | I |
The nominal current is 20 A.
The pitch is 7.62 mm.
It has 2 positions.
The terminal block is assembled by soldering.
