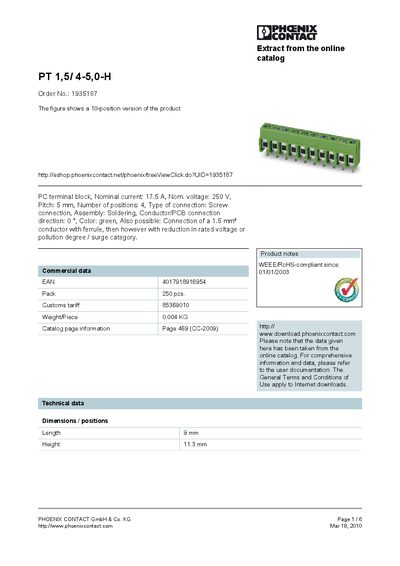

This is a PDF file of a PT 1,5/ 4-5,0-H connector product. Its rated current is 17.5A, rated voltage is 250V, pitch is 5mm, connection type is screw connection, color is green, and it can connect a 1.5mm² conductor, but it needs to be crimped, otherwise it will reduce the rated voltage or pollution degree/surge category.
The PT 1,5/4-5,0-H is a 4‑position terminal block with a 5 mm pitch, designed for screw‑type connections and optional soldering assembly. It is rated for a nominal current of 17.5 A and a nominal voltage of 250 V, with a green housing and 0° conductor direction.
The sheet provides detailed dimensions (9 mm × 11.3 mm), mechanical data such as tightening torque (0.35–0.4 Nm), and certification information (CUL, UL). Accessories, tools, and derating diagrams are also listed, along with compliance notes (WEEE/RoHS since 01/01/2003).
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Length | 9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.004 kg |
| Certifications | CUL, UL |
| WEEE/RoHS compliance since | 01/01/2003 |
The terminal block is rated for a nominal current of 17.5 A.
It has four positions.
The pitch is 5 mm.
It is certified according to CUL and UL standards.
