MPT 0,5 / 3-2,54 is a terminal block from Phoenix Contact with a nominal current of 6 A and a nominal voltage of 63 V.
The MPT 0,5/3-2,54 is a printed circuit terminal block with a 2.54 mm pitch and three screw‑type positions. It is rated for a nominal current of 6 A and a nominal voltage of 63 V, with higher surge voltage capabilities up to 1.5 kV.

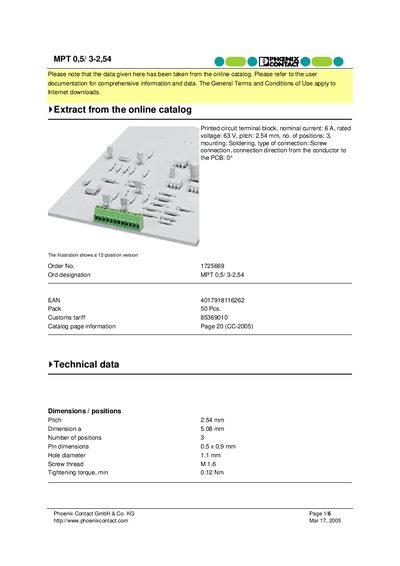

The document provides detailed dimensions, material specifications, certification marks (UL, CSA) and a list of compatible accessories such as marker cards and screwdrivers. Contact information for Phoenix Contact is also included.
| Nominal current | 6 A |
|---|---|
| Rated voltage | 63 V |
| Pitch | 2.54 mm |
| Number of positions | 3 |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 320 V |
| Insulating material | PA |
The nominal current is 6 A.
The pitch is 2.54 mm.
It has three positions.
