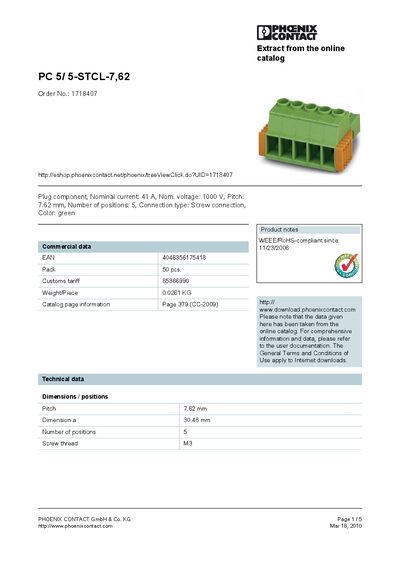

This document introduces the PC 5/ 5-STCL-7,62 plug component from PHOENIX CONTACT GmbH & Co. KG. The features of this component include a nominal current of 41A, a nominal voltage of 1000V, a pitch of 7.62mm, 5 positions, a screw connection, and a green color. This product is compliant with WEEE/RoHS standards.
This data sheet provides the technical specifications for the Phoenix Contact PC 5/5-STCL-7,62 plug component. It lists electrical ratings such as a nominal current of 41 A and a nominal voltage of 1000 V, mechanical details like a 7.62 mm pitch, five positions, and a screw‑type connection, as well as physical dimensions and weight.
Additional information includes tightening torque values (0.7 Nm min, 0.8 Nm max), compliance markings (WEEE/RoHS‑compliant since 11/23/2006), certification references (CUL, UL), and derating curves for different conductor sizes. Contact details for Phoenix Contact are provided at the end of the document.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Weight per piece | 0.0261 kg |
| WEEE/RoHS compliance date | 11/23/2006 |
| EAN | 4046356175418 |
The nominal current rating is 41 A.
The pitch is 7.62 mm.
The tightening torque should be between 0.7 Nm and 0.8 Nm.
Yes, it has been RoHS‑compliant since 11/23/2006.
