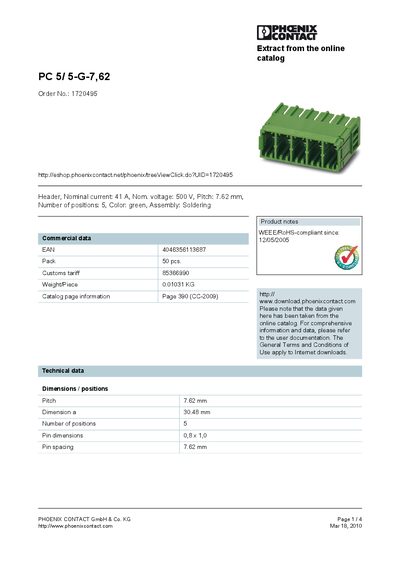

This document introduces the PC 5/ 5-G-7,62 product from PHOENIX CONTACT GmbH & Co. KG. The product has a green color, soldering assembly, and can withstand a rated current of 41A and a rated voltage of 500V. The product is WEEE/RoHS-compliant.
The PC 5/5-G-7,62 is a 5‑position, green‑colored connector with a 7.62 mm pitch, designed for soldering assembly. It is rated for a nominal current of 41 A and a nominal voltage of 500 V.
The datasheet provides detailed technical data, including pin dimensions, surge voltage ratings, certifications (CUL, UL), and mechanical drawings such as drilling plans and solder pad geometry. Packaging is 50 pieces per box with a weight of 0.01031 kg per piece.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Color | green |
| Weight per piece | 0.01031 kg |
The connector is rated for a nominal current of 41 A.
The pitch of the connector is 7.62 mm.
It has five positions.
