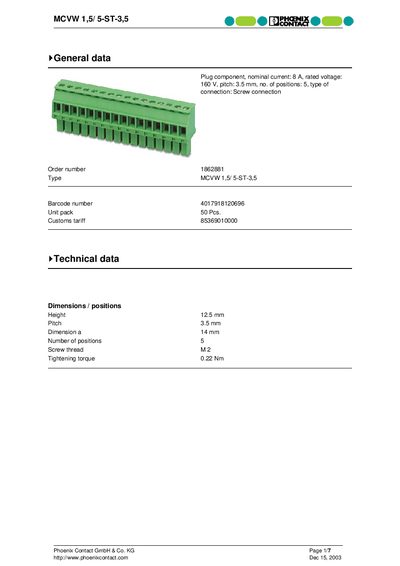

This document describes a general data plug component called MCVW 1,5/5-ST-3,5, with a nominal current of 8A, rated voltage of 160V, 5 positions, and a screw connection type.
The MCVW 1,5/5-ST-3,5 is a 5‑position screw‑connection terminal block with a 3.5 mm pitch, rated for 8 A and 160 V. It is designed for both rigid and flexible conductors and includes detailed mechanical dimensions and mounting information.
The handbook contains general data, technical specifications, certificates, drawing diagrams, a list of accessories and tools, related product references, and contact details for Phoenix Contact. It serves as a quick reference for engineers and installers who need the product’s key parameters and ordering information.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Height | 12.5 mm |
| Dimension a | 14 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The nominal current is 8 A.
The pitch is 3.5 mm.
It has 5 positions.
A tightening torque of 0.22 Nm is recommended.
