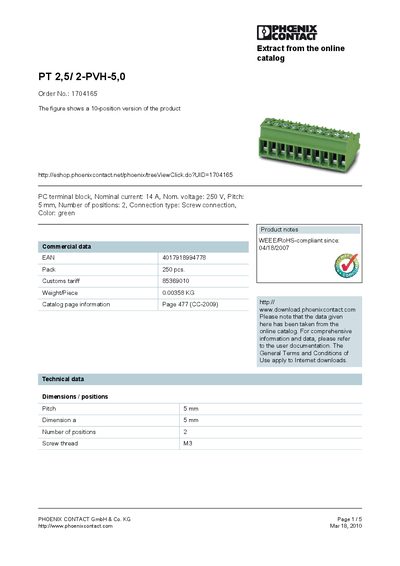

PT 2,5/ 2-PVH-5,0 is a PC terminal block from PHOENIX CONTACT with a nominal current of 14 A, a rated voltage of 250 V, a thread size of M3 and a green color.
The PT 2,5/2-PVH-5,0 is a 2‑position terminal block with a 5 mm pitch, screw‑type connections and a green housing. It is rated for 14 A nominal current and 250 V nominal voltage.
The document provides detailed technical specifications, tightening torque values, dimensional drawings, and certification information (CUL, UL). Contact details for Phoenix Contact Germany are also included.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.00358 kg |
The nominal current is 14 A.
The tightening torque should be between 0.45 Nm and 0.5 Nm.
Each terminal block weighs 0.00358 kg.
