APD / DIN 72585 connector is a direct, in-line and bulkhead sensor connector that is resistant to engine, transmission and brake fluid. It also boasts very low contact resistance, so you can benefit from maximum signal intergrity. APD is available in 1-, 2-, 3-, 4-, 6- and 7 position versions and has been designed to meet all DIN 72585 requirements. Applications for the 4- and 7-way connector include: Sensors, Traction / Anti Skid Control, Brake Control (ABS), Magnetic Switch Control Systems, Valve Control (Water, Oil, Air, Pressure), Lightening systems on Trucks and Trailers.
The ITT Cannon APD series provides direct, in‑line and bulkhead sensor connectors that resist engine, transmission and brake fluids while offering very low contact resistance for maximum signal integrity. Available in 1‑, 2‑, 3‑, 4‑, 6‑ and 7‑position versions, the connectors comply with DIN 72585 and are suitable for applications such as ABS, traction control, valve control and lighting systems on trucks and trailers.

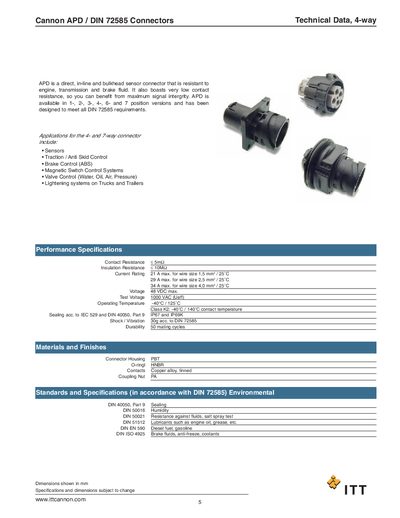

The document lists performance specifications (contact resistance ≤5 mΩ, insulation resistance ≤10 MΩ, current ratings up to 34 A), environmental ratings (IP67/IP69K, temperature range –40 °C to 125 °C), mechanical details (30 g shock, 50 mating cycles), order numbers, color coding, and the required crimp and assembly tools.
| Current Rating (1.5 mm² wire) | 21 A max @ 25 °C |
|---|---|
| Current Rating (2.5 mm² wire) | 29 A max @ 25 °C |
| Current Rating (4.0 mm² wire) | 34 A max @ 25 °C |
| Maximum Voltage | 48 VDC |
| Test Voltage | 1000 VAC (Uetf) |
| Operating Temperature | -40 °C to 125 °C |
| Sealing (IP Rating) | IP67 and IP69K |
| Shock / Vibration | 30 g |
| Mating Cycles | 50 cycles |
The connector can carry up to 29 A max at 25 °C for a 2.5 mm² wire.
The connector is sealed according to IEC 529 and DIN 40050 Part 9 and has IP67 and IP69K ratings.
