C&K CG Series Single Pole Power Rocker Switches are single pole power rocker switches from C&K company. Features include beveled frame and illuminated versions. Easy panel mount installation.
The C&K CG Series single‑pole power rocker switches are offered in a variety of actuator colors, mounting styles, and terminal options. Features include a bevelled frame, optional illumination, and easy panel‑mount installation.

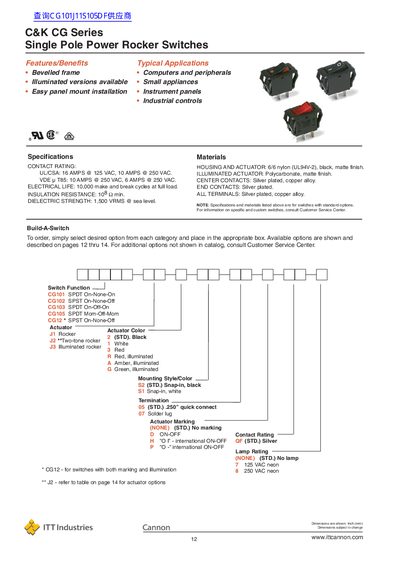

Typical applications cover computers and peripherals, small appliances, instrument panels, and industrial controls. The document provides detailed specifications, material descriptions, and a Build‑A‑Switch ordering guide.
| Contact rating (UL/CSA) | 16 A @ 125 VAC, 10 A @ 250 VAC |
|---|---|
| Contact rating (VDE T85) | 10 A @ 250 VAC, 6 A @ 250 VAC |
| Electrical life | 10,000 make‑and‑break cycles at full load |
| Dielectric strength | 1,500 VRMS @ sea level |
| Housing material | 6/6 nylon (UL94V‑2), black, matte finish |
| Illuminated actuator material | Polycarbonate, matte finish |
| Contact material | Silver plated, copper alloy |
| Panel thickness | 0.030‑0.049 in (0.75‑1.25 mm) |
They are used in computers and peripherals, small appliances, instrument panels, and industrial controls.
Snap‑in mounting is available in black (standard) and white.
