C&K S Series Slide Switches are available with 6 to 15 AMP ratings, an enclosed housing, PC and Snap-in panel mounting, a reversing option, and are RoHS compliant. Typical applications include portable tools, small appliances, and floor care products.

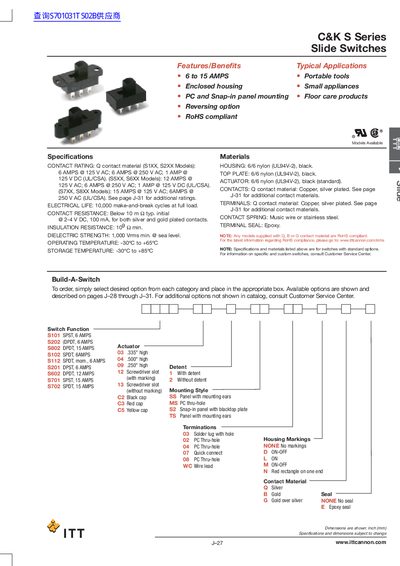

The C&K S Series slide switches from ITT are offered for a range of applications such as portable tools, small appliances, floor‑care products and PC panel mounting. The leaflet lists typical features, benefits and available models, along with mounting styles and actuator options.
Technical data include contact ratings, electrical life, resistance values, temperature limits and material details. Ordering information, custom options, RoHS compliance notes and part numbers are also provided.
| Contact rating (S1XX, S2XX) | 6 A @ 125 V AC; 6 A @ 250 V AC; 4 A @ 125 V DC (UL/CSA) |
|---|---|
| Contact rating (S6XX) | 12 A @ 125 V AC; 6 A @ 250 V AC; 1 A @ 125 V DC (UL/CSA) |
| Electrical life | 10,000 make‑and‑break cycles at full load |
| Dielectric strength | ≥ 1,000 V rms (sea level) |
| Operating temperature | -30 °C to +65 °C |
| Storage temperature | -30 °C to +85 °C |
The S1XX and S2XX models are rated for 6 A @ 125 V AC, 6 A @ 250 V AC, and 4 A @ 125 V DC (UL/CSA).
Yes. Any models supplied with Q, B or G contact material are RoHS compliant.
The switches are rated for 10,000 make‑and‑break cycles at full load.
