This document introduces ITT Cannon's TD1* series filter connector products. The TD1* series products have greater design flexibility and system reliability, and are very suitable for applications where space and weight are the primary considerations.
ITT Cannon’s TD1* filter connectors are designed to merge the functions of a standard electrical connector and a feed‑through filter, offering greater design flexibility, system reliability, and reduced size and weight. They are compatible with all standard D subminiature connectors and meet the MIL‑C‑24308 specification.

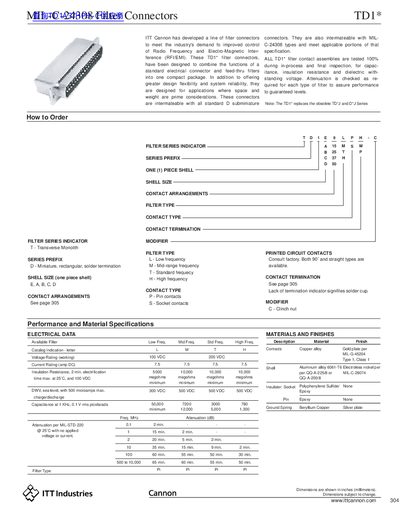

The data sheet provides detailed electrical performance, material specifications, dimensions, and mounting information, along with ordering guidance for the various filter series and shell sizes.
| Voltage Rating (working) | 100 VDC (Low), 200 VDC (Mid/Std/High) |
|---|---|
| Current Rating (amp DC) | 75 A (all frequency ranges) |
| Capacitance at 1 kHz, 0.1 V rms | 50 000 pF (Low), 7 200 pF (Mid), 3 000 pF (Std), 780 pF (High) |
| Contact material | Copper alloy, gold‑plated per MIL‑G‑45204 |
| Shell material | Aluminum alloy 6061‑T6, electroless nickel per specification |
| Insulator material | Polyphenylene sulfide (PPS) |
The TD1* series replaces the obsolete TD*J and D*J series.
The working voltage is 100 VDC for low‑frequency versions and 200 VDC for mid‑, standard‑ and high‑frequency versions, with a current rating of 75 A DC for all.
The contacts are made of copper alloy with a gold plating per MIL‑G‑45204.
