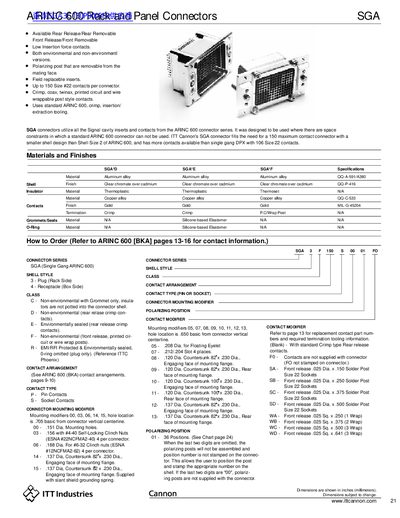

This document describes the features and characteristics of ITT Cannon's ARINC 600 Rack and Panel Connectors SGA series products. The connectors in this series have rear release/rear removable and front release/front removable options, low insertion force contacts, field replaceable inserts, and support various types of contacts. SGA connectors are designed for applications with space constraints, offering a smaller shell design than the standard ARINC 600 connector and more contacts than single gang DPX connectors with 106 Size 22 contacts.
The SGA series is a single‑gang ARINC‑600 connector designed for space‑constrained installations. It offers up to 150 Size #22 contacts per connector and supports rear or front release contact styles, including crimp, coax, twinax, printed‑circuit and wire‑wrap posts.
The document provides detailed dimensions for plug and receptacle shells, recommended panel cutouts, material finishes, polarization options and a full list of mounting modifiers. Ordering information and contact part numbers are also included.
| Maximum contacts per connector | up to 150 Size #22 contacts |
|---|---|
| Shell style | SGA (Single Gang ARINC 600) |
| Mounting modifiers (rear release) | 05, 07, 08, 09, 10, 11, 12, 13 |
| Material finish (plug side) | Aluminum alloy, clear chromate over cadmium |
The SGA connector can accommodate up to 150 Size #22 contacts.
Rear‑release mounting modifiers include 05, 07, 08, 09, 10, 11, 12, 13, while other options such as 00, 03, 06, 14, 15 are also listed.
The connector uses an aluminum alloy body with a clear chromate over cadmium finish.
