ITT has been developing innovative solutions for harsh environment applications for over 90 years. We offer the broadest portfolio of interconnect products and have a proven track record in the transportation industry.

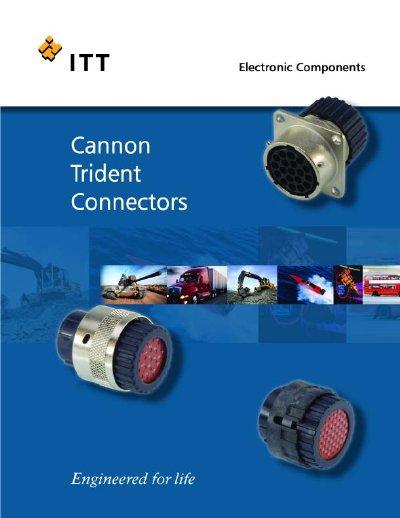

The Trident Connector System from Cannon offers a versatile family of electrical connectors based on a standard contact design. The system includes low‑cost rectangular snap‑together connectors, slimline low‑profile connectors, multi‑way rack & panel connectors, and robust ringlock circular connectors, all interchangeable within the series.
The guide details dimensions, electrical ratings, material finishes, part numbers, and ordering information for each connector type. It also includes performance data, IP rating charts, assembly instructions, and a comprehensive part‑number index to aid designers and technicians in selecting the appropriate components for harsh‑environment and industrial applications.
| Operating Voltage | 250 V ac rms |
|---|---|
| Contact Current Rating | Up to 13 A |
| Temperature Range (Free Plug & Panel Receptacles) | -55°C to 105°C |
| Temperature Range (PCB Mounted Receptacles) | -40°C to 105°C |
| Insulation Resistance | 5000 MΩ at 500 V dc |
| Connector Latching Force | 150 N min. |
| Test Voltage | 2000 V ac for 60 secs |
| Panel Retention Force | 500 N min. |
| Insulator Material | Black Nylon, UL 94V-0 |
The Snap Together Rectangular connectors are rated for up to 13 A.
The insulator material is Black Nylon, UL 94V‑0.
Slimline connectors are rated for 250 V ac rms.
